ATEA Lighting

Campus

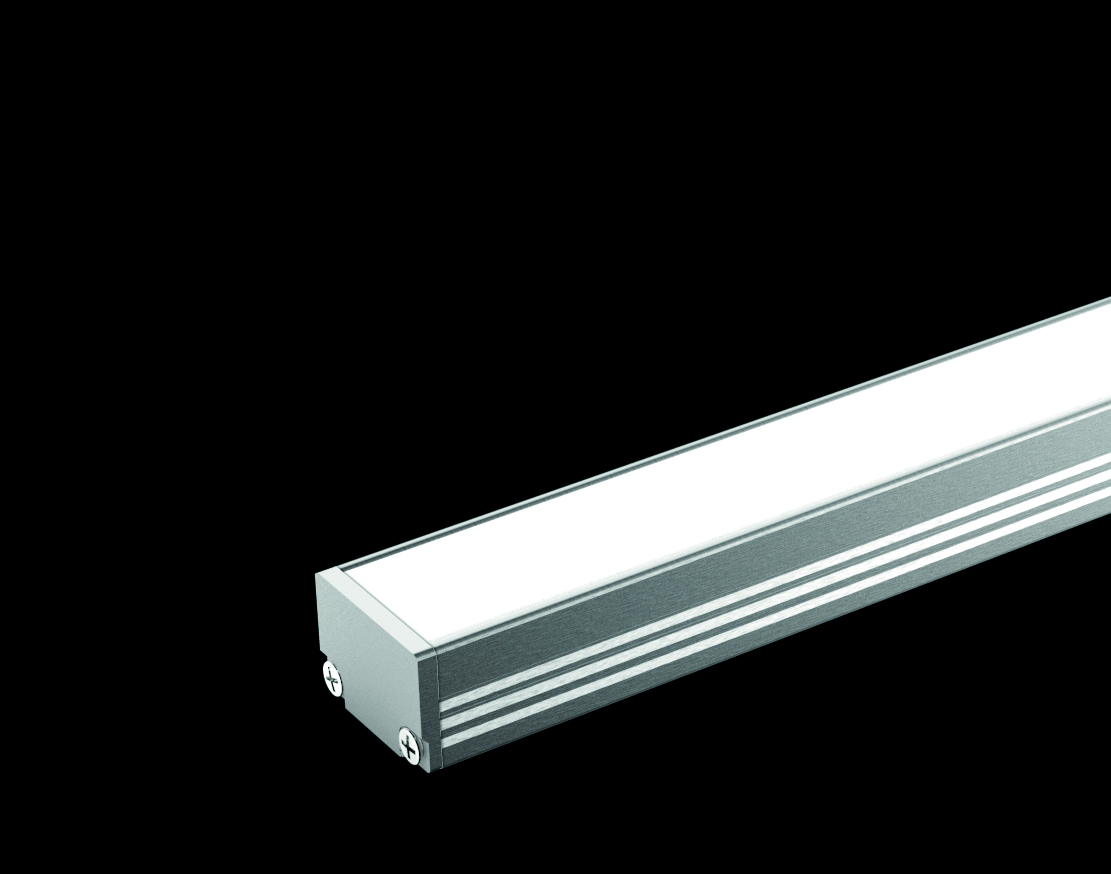

Profile 20 w/m with optique

Profil aluminium 20 w/m avec optique

Puissance Power

20 W/m

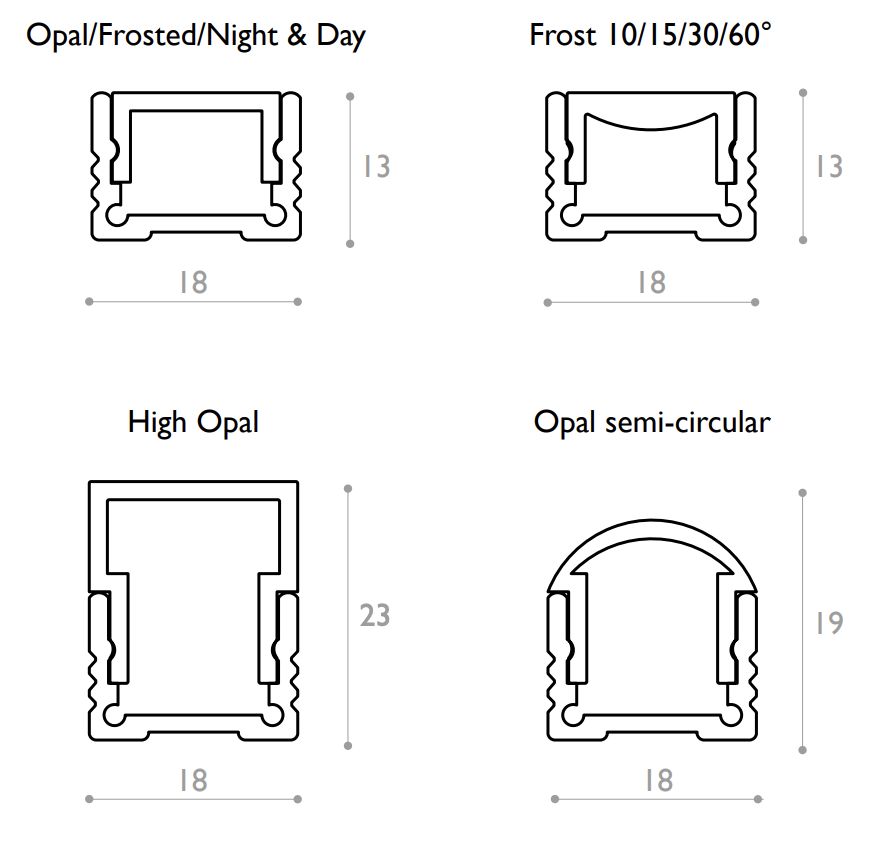

Dimensions Dimensions

18,40 x 13 mm (18,40 x 15 mm with 30 optic)

Longueur maximale Max.length

3000 mm

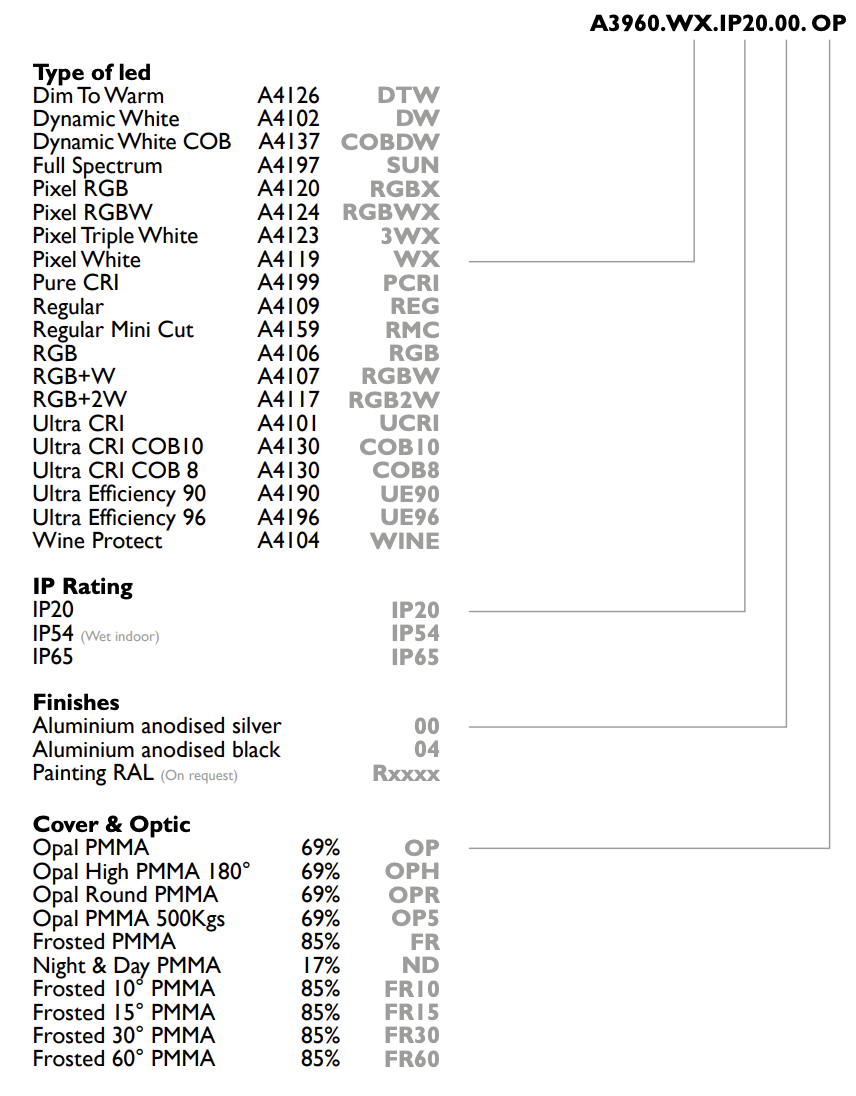

Ruban LED utilisable LED strip available

Indice de protection IP rating

IP20 - IP54 - IP65

Température d’utilisation Ambiant temp.

-10°C / + 40°C

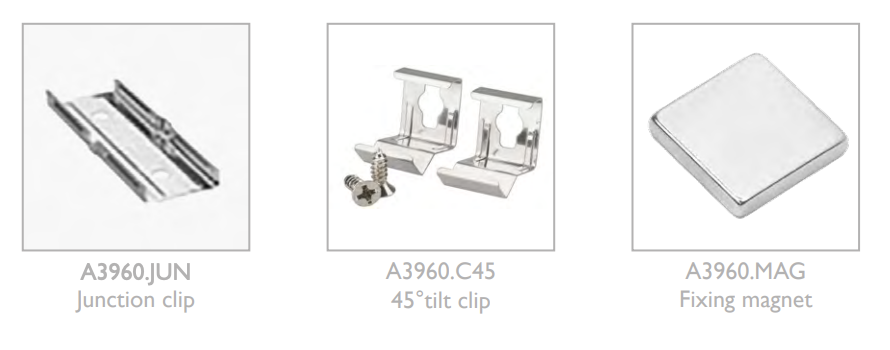

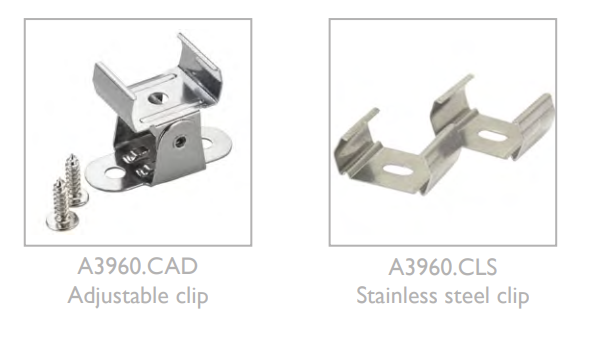

Accessoires Accessories

A400.190
Clips Inox A400.190 Clips Inox
A400.091
Clips 45° A400.091 Clips 45°
A400.191
Clips Orientable A400.191 Clips Orientable
A400.291
Clips Liaison A400.291 Clips Liaison
A400.609
Clips End Cap Oeillet A400.609 Clips End Cap Oeillet
A402.300

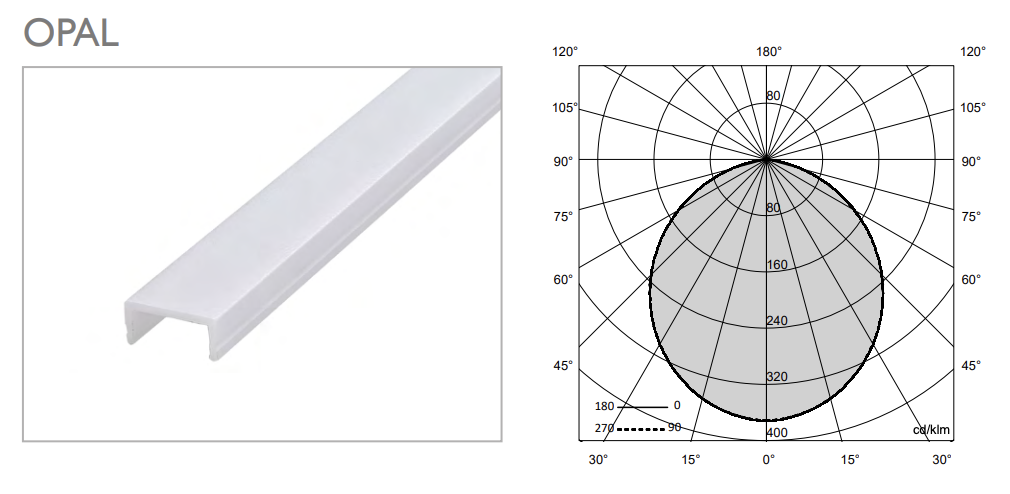

Optic Opal A402.300 Optic Opal
A402.370

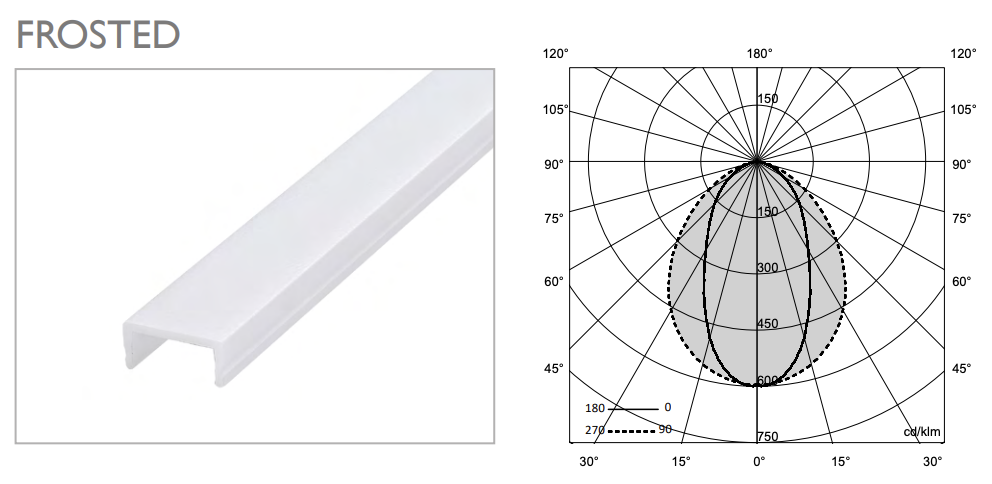

Optic Frost A402.370 Optic Frost
A402.340

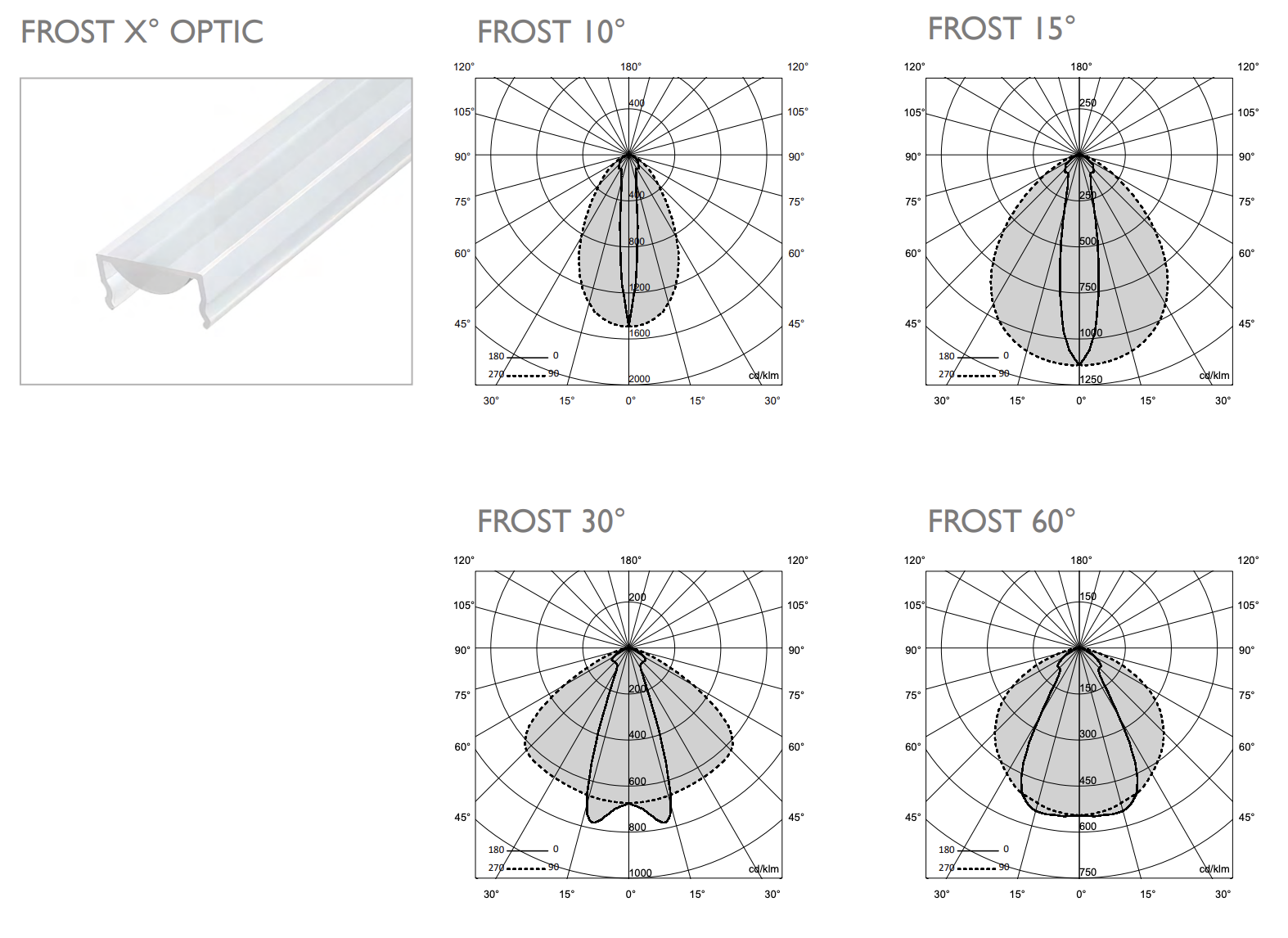

Optic Frost 30° A402.340 Optic Frost 30°
A400.090
2x Mounting clips A400.090 2x Mounting clips
A400.604
2x End cap flat plastic A400.604 2x End cap flat plastic
A400.614
2x End cap flat alu A400.614 2x End cap flat alu
