Flexible Uniform LED light line, side bend, up to 50m lenght

Ligne LED flexible lateralement, jusqu’à 50m

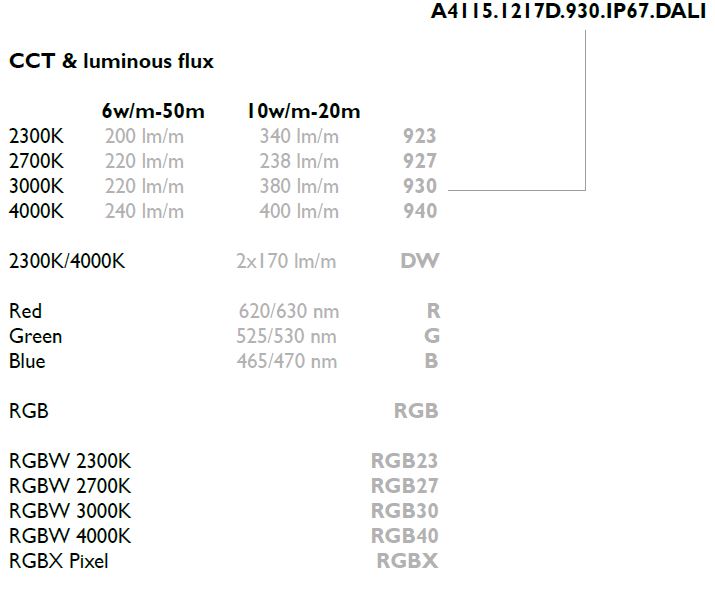

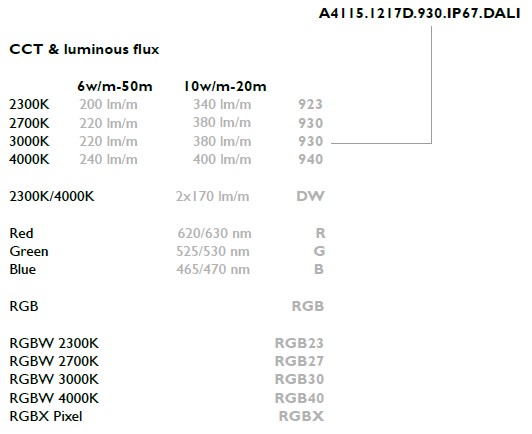

CCT
Temperature de couleur
W.2300K I W.2700K I W.3000K I W.4000K DW.2300K/4000K I R/G/B I RGB I RGBW
Color consistancy & CRI
Precision de couleur & IRC
OneBinOnly I 92+
Luminous output & Beam angle
Puissance lumineuse & Angle ouverture
(@4000K) 400 lm (10w) I 220lm (6w)
Power
Puissance
6 w/m I 10w/m
Cutting unit
Coupe
100mm (2300K/2700K/3000K/4000K/5000K) I 62.5mm (DW) 100mm (R/G/B/Y) I 100mm (RGB) I 125mm (RGBW)
Dimensions & min. bending radius
Dimensions & Rayon min. courbure
50.000 x 17 x 20 mm (6w/m) I 20.000 x 17 x 20 mm (10w/m) I >60mm
Standards
Indices de protection & norme
IP67 I IK08 I LM80 I CE I UL Listed Flame resistant - UV resistant - Solvent resistant - Saltwater resistant
Input voltage & Class
Tension alimentation & Classe isolation
48Vdc I class III
Ambiant temp.
Température d’utilisation
-20°C / +40°C
Downloads
Datasheet
